P8100 - Powerful Large Screen Ruggedized Industrial Tablet

P8100 Series

P8100 Enterprise Tablet

Powerful and Rugged

Quick Charge
13MP camera
Dual-band WiFi
Dual cards and dual standby
WWAN
Seamless roaming
IP67
1.2m

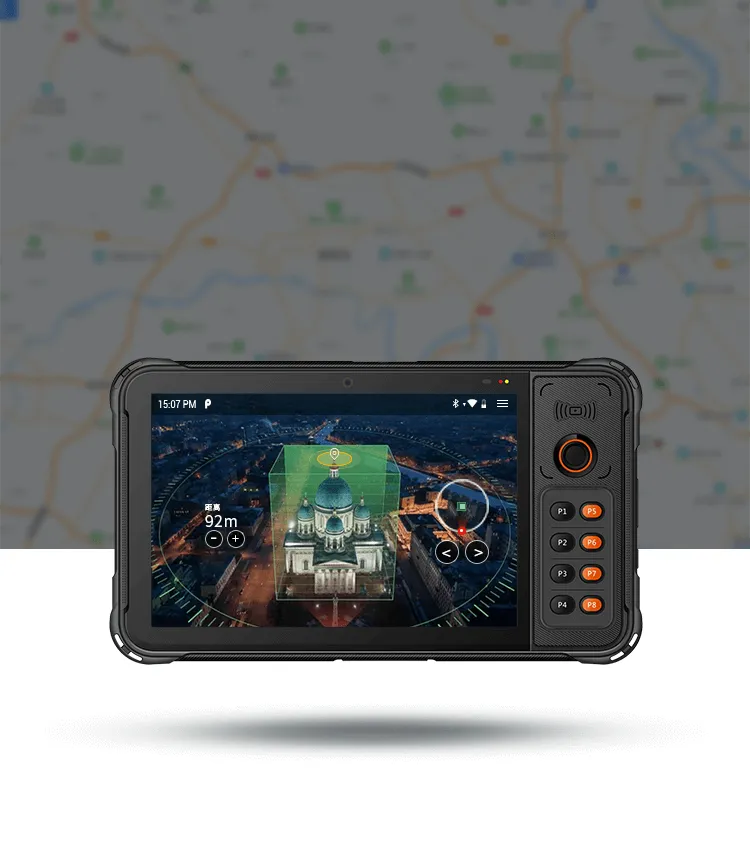

Large screen for wider field of view

Equipped with a 10.1" full-fit TFT color screen, P8100 handheld ruggedized tablet

allows you to view more information at a glance with a large enough display area.

High-end scan engine for easier scanning

P8100 portable Android industrial tablet built-in high-end scanning engine, can quickly identify various

1D/2D barcodes and accurately collect dirty, damaged, and deformed barcode data.

Super high performance

UROVO ruggedized Android industrial tablet featured an octa-core high-performance CPU and Android 10.0/9.0 OS.

The powerful performance enables faster computing and a smoother user experience.

Larger and more clear sound

Dual-speaker stereo, BOX sound cavity,
capturing clear feedback sound even in noisy environments

Excellent industrial quality

IP67 sealing and 1.2 m shock resistance are built within the P8100 hand-held tablet for every purpose

*IP67 sealing is not equipped with the optical fingerprint module

Abundant configuration for more possibilities

Keyboard version | optical fingerprint version | electromagnetic screen version

PSAM
RTK
Carrying Case

Handstrap
Screen protective film
Multi-functional cradle

RTK accuracy positioning ensures hassle-free mobile operation

General GPSs, which do not support high-accuracy positioning, cannot adapt to specialized sites that require high-accuracy positioning, including engineering surveying and mapping, power measurement, railway inspection, and agricultural and forestry operations.The RTK high-accuracy positioning module has the ability to derive three-dimensional results of the testing site in the designated coordinate system, which can reach an accuracy level of 1 cm.

Fingerprint identification technology
for high-level ID verification

Large-size FAP20 optical sensor module is certified by FBI PIV, supporting specific professional data format application. It is widely used in various scenarios, including government national ID & Civil ID projects, entry-exit management, voter registration, SIM card registration, banking, defense & security check.

FBI PIV&FAP20
Certification
Live Finger
Detection

Professional applications for higher work efficiency

P8100 handheld industrial tablet helps you to perform best with professional applications, in manufacturing workshops, logistics warehouses, government inspection sites, or health care organizations.

The P8100 family is here to provide you with even more options


Model Number	P8100(8")	P8100(10.1")
CPU	Octa-core 1.8GHz	Octa-core 2.2GHz
O.S.	Android 9.0	Android 10.0
Memory	4+64GB	4+64GB
Screen Size	8"	10.1"
Sealing	IP67/1.2m	IP67/1.2m
Camera	13MP PDAF	13MP PDAF
Main battery	8400mAh	10000mAh
QC charging	√	√
Wi-Fi	2.4GHz/5GHz	2.4GHz/5GHz

Optional Accessories

Single cradle

P8100 Series

CPU

Octa-core Cortex-A53, 1.8GHz(8 inch)
Octa-core 2.2GHz(10.1 inch)
OS

Android 9 Pie with GMS
(Android 10 for 10.1 inch)
Memory

4GB RAM / 64GB ROM
Micro SD card, up to 256GB
Display

8 inch display，1280×800(HD)
10.1 inch display，1920×1200(FHD)
Touchpanel

Capacitive:
Multiple touch screen, support
gloves, wet finger and passive stylus.
Electromagnetic(optional):
Multiple touch screen, support gloves,
wet finger and passive stylus signature
Dimensions

253.8*146*16.5mm
(10.0*5.7*0.6 inch)
Weight

8 inch: 728.5g(25.7oz.)
10.1 inch: 826g(29.14 oz.)
Battery

3.8V 8400mAh(8 inch)
3.8V 10000mAh(10.1 inch)
Audio

Dual-speakers, Dual microphones,
audio jack
Scanning

1D/2D barcode reader
Can read all international standards
1D/2D barcode；
Can read barcode displayed on screens
and colored barcode
Camera

Front 5M Pixels, Rear 13M Pixels,
Flashlight
Buttons

Vol+/-, power key, scan key, P1~P8
function key
Vol+/-, power key, scan key
(Fingerprint model)
Bluetooth

BT4.2+BR/EDR+BLE(8 inch)
BT 5.0+BR/EDR+BLE(10.1 inch)
WiFi

2.4G/5G WIFI
IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w
WWAN

4G/3G/2G
Nano-SIM x 2
GPS

GPS, A-GPS, BEIDOU, GLONASS,
Galileo
High-precision RTK(Precision0.01m)
(Optional)
Sealing

IP67
Multiple 1.2m drop to concrete
at room temperature.
Environmental

Temperature: -20°C~60°C
Storage: -40°C~70°C
Humidity: 5%RH~95%RH(no
condensation)
